G507

Dual 2.5″ SATA Storage Expansion

CompactPCI Serial Carrier Board for HDD/SSD with Front-Panel LEDs

New Product

Main Features

2× 2.5" SATA 6Gbit/s
Temperature sensors for board and drives
Drive control and sensor readout via I2C
7 status LEDs
-40 °C to +85 °C operating temperature
Compliant with EN 50155 (railways)
Long-term availability

Description

2.5" HDD or SSD

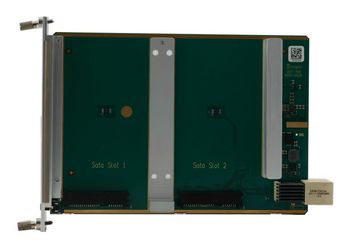

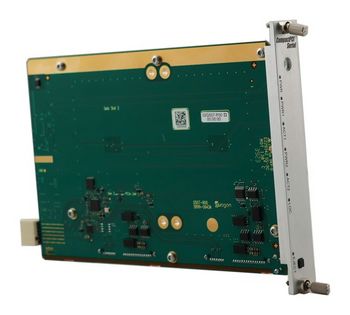

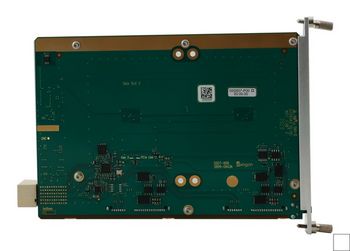

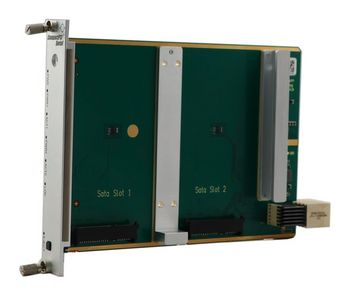

The G507 is a CompactPCI Serial storage expansion board for up to two 2.5" SATA drives.

Front Panel Status LEDs
The front panel features LEDs for board power, location and ejection status as well as activity for the individual installed drives.

Thermal Monitoring
Temperature sensors for SSDs and board connected via I2C enable detailed temperature monitoring.

Staggered Power-Up
The board powers up drives consecutively to alleviate electrical and system load.

Suitable for Railway Applications
The G507 complies with the EN 50155 standard for use in railway applications.

Interfaces

SSD/HDD slot

2× SATA 2.5"; SATA Revision 3.x

Supervision and Management

Temperature measurement
Drive Control

Product Standard

CompactPCI Serial: CompactPCI Serial PICMG CPCI-S.0 Specification

Electrical Specifications

Supply voltage: +12 V (-10 % / +10 %)
Power consumption: 35 W peak
Maximum allowed power consumption per drive: 10 W

Mechanical Specifications

Dimensions: 3U, 4 HP

Cooling
- forced convection, required airflow depends on assembled drives

Protection rating: IP20

Product Compliance: Rail - Rolling Stock

Compliance level: This product is prepared for use in EN 50155 systems. Some parameters are system-dependent and are specified on system level.
Operating temperature: -40 °C to +85 °C (EN 50155:2021, Tmax/PCB = +85 °C; designed for use in OT4+ST1 systems)
Equipment location
- EN 50155:2021, location 1, closed electrical operating area
- EN 50155:2021, location 2, cabin and interiors
Rapid temperature variations: EN 50155:2021, class H1, no requirements
Storage temperature: -40 °C (EN 50155:2021) to +85 °C (EN 60068-2-2, Bb)
Altitude: +3000 m max. (EN 50125-1:2014, class AX)
Pollution degree: EN 50124-1:2017, class PD2
Humidity: +55 °C and +25 °C, 100 % RH max. (EN 50155:2021)
Shock: 30 ms @ 50 m/s² (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class A)
Vibration: 10 min @ 2.02 m/s² (functional) and 5 h @ 11.44 m/s² (long-life) (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B, double acceleration)
Electrical safety
- EN 50155:2021
- EN 50153:2014 + A1:2017 + A2:2020
- EN 50124-1:2017
- EN ISO 13732-1:2008
Fire protection: EN 45545-2:2020, EL9, HL3
EMC emission
- EN 50121-3-2:2016 + A1:2019
- Regelung Nr. EMV 06 :2019-05-09 (2.0), Anhang E: Messung an Geräten, Schutzklasse S1
- Regelwerk 50.02.01 :2021-12-01, 12.3.2. EMV - Funk, prequalified according to electronic equipment tests defined by Deutsche Bahn EMV 06 standard, class S1, for risk minimization in finished vehicle test
EMC immunity: EN 50121-3-2:2016 + A1:2019
Protective coatings: EN 50155:2021, class PC2 (Any PCB protected on both sides)
Useful life: 20 years (EN 50155:2021, class L4)

Product Compliance: Rail - Wayside Non-Safety Related

Operating temperature: -40 °C to +70 °C (EN 50125-3:2003, class T2, cubicle, with class T2 maximum extended by 5 °C)
Storage temperature: -40 °C (EN 60068-2-1:2007, Ab) to +85 °C (EN 60068-2-2:2007, Bb)
Altitude: +3000 m max. (EN 50125-3:2003, class AX)
Pollution degree: EN 50124-1:2017, class PD2
Humidity: 95 % RH max. (EN 50125-2:2002, building N.C.C., class T1/T2/TX)
Humidity - Condensation: Non-condensing
Shock: 11 ms @ 20 m/s² (EN 50125-3:2003, in a switch cabinet 1 m to 3 m from the track)
Vibration: 2.3 m/s² (EN 50125-3:2003, in a switch cabinet 1 m to 3 m from the track)
Electrical safety
- EN 50124-1:2017
- EN 62368-1:2014 + AC:2015
EMC emission: EN 50121-4:2016 + A1:2019
EMC immunity: EN 50121-4:2016 + A1:2019

Product Compliance: Information Technology Equipment

Operating temperature: -40 °C (EN 60068-2-1:2007, Ae) to +85 °C (EN 60068-2-2:2007, Be)
Storage temperature: -40 °C (EN 60068-2-1:2007, Ab) to +85 °C (EN 60068-2-2:2007, Bb)
Altitude: +3000 m max. (EN 62368-1:2014 + AC:2015)
Electrical safety: EN 62368-1:2014 + AC:2015
Flammability (PCBs): UL 94 V-0
EMC emission
- EN 55032:2015 + A11 + A1:2020 (multimedia equipment), class A (industrial environments)
- EN 61000-6-4:2019 (generic standard, industrial environments)
EMC immunity:
- EN 55035:2017 + A11:2020 (multimedia equipment)
- EN 61000-6-2:2019 (generic standard, industrial environments)

Reliability

MTBF: 2 638 277 h predicted @ 40 °C according to IEC/TR 62380 (RDF 2000)
