G506A
Rugged AI Accelerator with 4x M.2 PCIe Slot
Main Features
- 4× M.2 AI Accelerator Board (PCIe 3.0 x8)
- 2230/2242/2260/2280 card sizes
- Large aluminum heat sink
- AI module power control interface and thermal monitoring
- Onboard power buffer for impulse loads
- 11 status LEDs
- Up to -40 °C to +85 °C operating temperature
- Compliant with EN 50155 (railways)
- Long-term availability
CompactPCI Serial with four AIPU/NPU Modules

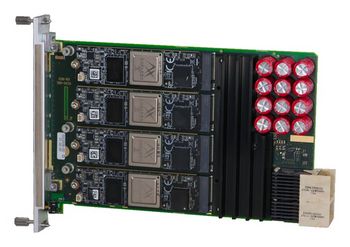

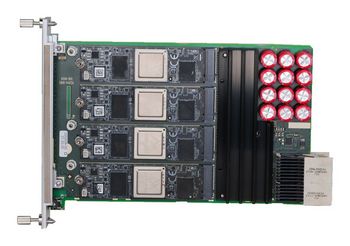

The G506A is a CompactPCI Serial expansion board featuring up to four Axelera AI Metis™ AIPU (Artificial Intelligence Processing Unit) or optionally Hailo AI modules to introduce and leverage sophisticated AI applications at embedded level (e.g. CCTV with object and anomaly detection). This solution will allow you to use all AIPU/NPU modules within a single software application and even distribute them to different instances of a virtualized computer solution.
Rugged AI Module Carrier for Railway Applications
The G506A complies with the EN 50155 standard for use in railway applications. A large, finned aluminum heat sink provides optimum heat dissipation for optimal performance.
Thermal Monitoring and Control
Thermal sensors allow for flexibility with specific user applications and thermal conditions.
This Product is Coming Soon
The G506A will be available once conformity assessments are completed.
