Low Power CPU

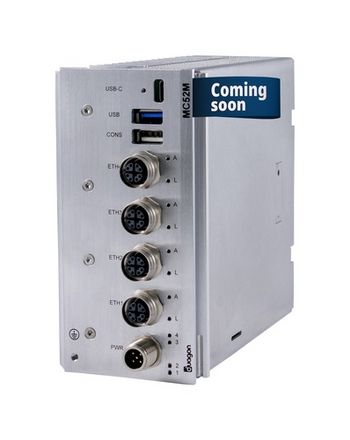

The MC52M is a modular computer for embedded applications in transportation, e.g., trains, buses or commercial vehicles. The computing platform features an Intel Atom x7000RE series CPU with low power dissipation and scalability in performance and memory.
The MC52M is the ideal basis for functions such as security gateway, predictive maintenance, CCTV or ticketing system, or to act as a diagnostics server.
Modular System for Easy Configuration
The MC52M can be a stand-alone product, but due to the modular concept it offers flexible built-to-order configurations. The box can be easily combined with prefabricated extension modules, providing additional features and short delivery times.

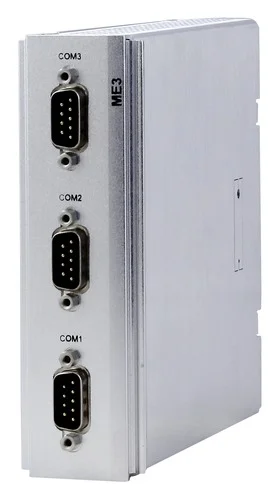

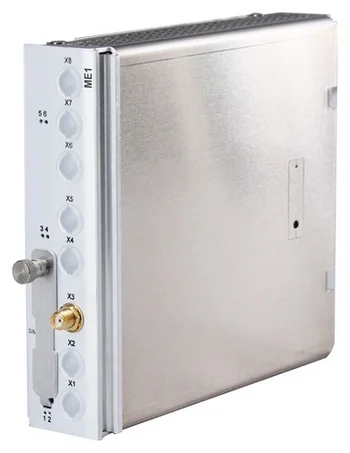

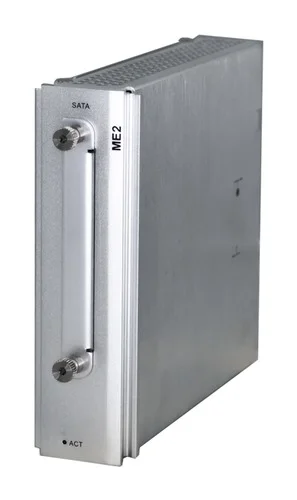

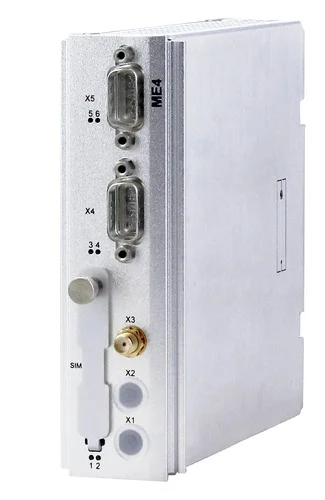

Extension modules can provide application-specific functions like wireless communication (LTE advanced, WLAN, GNSS), MVB, CAN bus, or other I/O. A removable storage shuttle can support the integration of a 2.5" SATA HDD/SSD. With a PSU extension module, ultra wide range isolated power supply from 24 V DC to 110 V DC nominal (EN 50155) is available.
Power Saving Design and Security Features
The board management controller provides enhanced reliability and reduced downtime. The Trusted Platform Module supports security and encryption features. With the ignition switch for remote control of booting and shutdown, the platform provides additional features for power saving.
Flexible System Installation
Various mounting options facilitate the integration of the box into an existing environment. The standard 35 mm DIN Rail mounting offers space saving mounting of all system modules on a single rail. Wall mounting and mounting in a 19" rack using adaption brackets are an option.
The aluminum housing with cooling fins allows fanless operation. MC52M has no moving parts, making it maintenance free.
Rolling Stock Qualified and Long-Term Available
The CPU module is qualified for rolling stock and wayside applications.
Long-term availability ensures an extended product life and future-safety.
