10EM09-60

10EM09-60

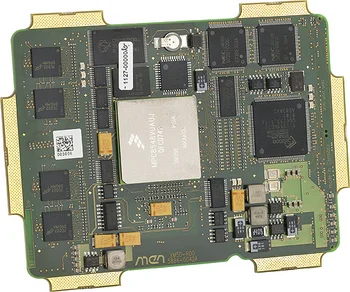

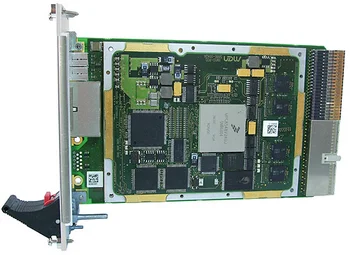

VxWorks 6.4/6.5 BSP (duagon) for A17, EK9, EM9, EM9A, F50C, F50P and XM50

Not available for download

Licensing Information

Costs

Subject to costs | Contact Sales

Supported Operating System

Supported Hardware Features

CPU
- MPC8543, MPC8548
- MPC85xx on-chip units
- L1 and L2 data caches
- MMU
- EPIC interrupt controller
Memory
- Up to 2GB DDR2 SDRAM
- FRAM
- EEPROM
Mass Storage
- Onboard NAND IDE 16Z070_IDEDISK
- IDE/ATA: 16Z016_IDE and 16Z023_IDENHS
- SiI3114 SATA (XM50/F50C/F50P)
I/O
- TSEC1/2/3/4 GBit Ethernet
- MPC854x DUART
- USB
- WindML devices (with EK9): graphics: 16Z044_DISP in onboard FPGA; touch: 16Z031_TOUCH controller in onboard FPGA with ADS7873A touch controller; serial lines: 16Z125_UART
Miscellaneous
- PCI/PCIe
- VMEbus TSI148 (A17)
- I²C
- Watchdog
- Supervision circuit LM81
- RTC

Included Documentation

10EM09-60

VxWorks 6.4/6.5 BSP (duagon) for A17, EK9, EM9, EM9A, F50C, F50P and XM50

Available for download Details

10EM09-60

VxWorks 6.4/6.5 BSP (duagon) for A17, EK9, EM9, EM9A, F50C, F50P and XM50

Not available for download

16p599-00.zip

Nios PMC USM FPGA Development Package (MEN) Not available for download Details
