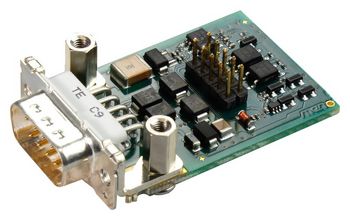

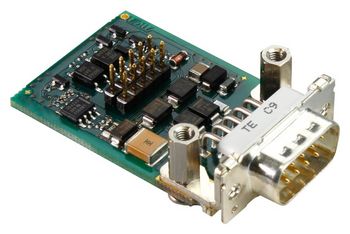

SA24M
IBIS Master
Main Features
- 1 channel master
- Over-current and short-cut protection
- Optical isolation
- -40 °C to +85 °C
Integrated Board Information System
The SA24M provides one IBIS master interface with an external 24 V supply. While a fieldbus master controls the data traffic, the data transfer between master and slave participants is initiated only by the master.
IBIS is a fieldbus used in public transport vehicles. It is based on a UART structure and can therefore be combined with duagon products that support any kind of UART interfaces together with SA-Adapter slots.
Versatile I/O Features
SA-Adapters are small universal boards providing the line drivers for legacy serial I/O, fieldbus interfaces and other I/O functions. One serial line is provided per adapter, which can be plugged directly to duagon products such as CPU boards as a mezzanine. Alternatively, the adapter can be connected to the front panel via ribbon cable.
Interface Extensibility
The SA concept allows to add additional I/O interfaces to duagon products, enhancing flexibility for line transceivers and isolation requirements. Compatibility of SA-Adapters or a combination thereof with duagon products is determined by mechanical, performance, FPGA and operating system criteria and needs to be verified for every board configuration requested.
Long-Term Availability
Long-term availability ensures an extended product life and future-safety.
- IBIS master on front connector
- External 24 V power supply on front connector for IBIS signal level
- Standard IBIS data rate (1200 bit/s) up to standard UART data rate (up to 9600 bit/s)
- Serial TTL Interface on 10-pin SA-Adapter connector
- As a piggy-back board directly on a carrier board
- Via ribbon cable
- Isolation voltage:
- 750 V DC or 500 V AC between isolated side and digital side
- Supply voltage/power consumption:
- Digital side +5 V (-3 % / +5 %), 10 mA typ. (25 mA max.)
- Isolated side +24 V (-30 % / +25 %), 10 mA typ. (110 mA max., when loopback on pin 1/2)
- Dimensions: 32 mm x 42 mm
- Weight:
- 18 g (Master)
- Temperature range (operation): -40 °C to +85 °C
- Temperature range (storage): -40 °C to +85 °C
- Relative humidity (operation): max. 95% non-condensing
- Relative humidity (storage): max. 95% non-condensing
- Altitude: -300 m to + 3 000 m
- Shock:
- 50 m/s², 30 ms (EN 61373)
- 15 g, 11 ms (EN 60068-2-27)
- Vibration (function): 2.02 m/s², 5 Hz to 150 Hz (EN 61373)
- Vibration (lifetime): 11.44 m/s², 5 Hz to 150 Hz (EN 61373)
- EN 50121-3-2 (conducted disturbance)
- IEC 61000-4-4 (burst)
- IEC 61000-4-6 (conducted disturbances)
