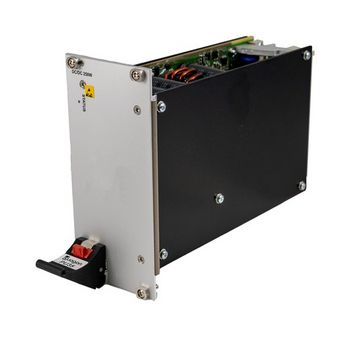

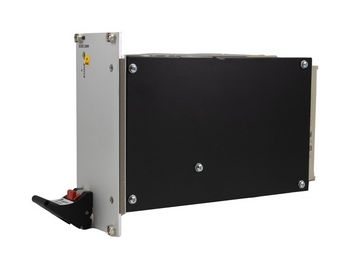

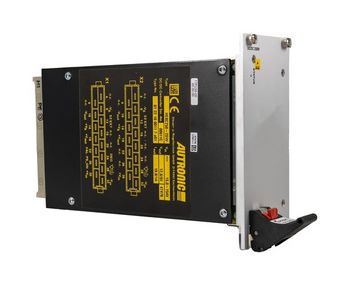

PU35
Railway CompactPCI Power Supply Unit 24 to 110 VDC, 250 W (3U)
Main Features
- 3U, 12 HP, 19" rack mountable
- Wide range input 24 V DC to 110 V DC nominal
- Configurable undervoltage via rotary switch
- Output power without derating
- Hold up time 10 ms (EN 50155 Class S2)
- H15 rear connector
- -40 °C to +70 °C (+85 °C)
- Conformal coating
- Input voltage according to S-9401
- EN 50155 compliance
Designed for Rail Applications, Vehicle and Wayside
The PU35 is a plug-in power supply unit for 19" systems (e.g., CompactPCI). It is especially designed for computer systems in public transport vehicles and for harsh environments, like railway applications, making it suitable for both rolling-stock and wayside use.
Wide-Range Input
The PU35 has a nominal input power range of 24 V DC to 110 V DC with a max. input voltage range of 15 V DC to 154 V DC (according to EN 50155 and S-9401). The undervoltage threshold is configurable via rotary switch for the nominal voltages of 24, 36, 48, 72, 96, 110 V DC and 74 V DC.
Advanced Power Supply Functionality
The standard output voltage is 12.6 V DC. The PU35 also has a standby voltage of 5 V DC with 5 W to supply the independent shelf controller, and to support wake-on-LAN functionality. The standby voltage is always on. The PSU also features overvoltage protection, overcurrent protection and overtemperature protection.
Rugged Design
The PSU is coated conformally, and all components are secured against vibration. In case of an error, the voltage is powered down. The thermal stress is extremely low due to integrated heat sinks and diversion of dissipated heat over the mounting surface. The PU35 is compliant with EN 50155, operating in the temperature range from -40 °C to +70 °C (10 min @ +85 °C).
- Supply voltage: 24 V DC to 110 V DC nom.
- Supply voltage range: 15 V DC to 154 V DC
- Undervoltage threshold (configurable): 24 V DC, 36 V DC, 48 V DC, 72 V DC, 96 V DC, 110 V DC
- Undervoltage threshold (configurable): 74 V DC (according to S-9401)
- Supply voltage range (for 74 V DC): 20 V DC to 130 V DC
- Power-on/-off threshold according to EN 50155
- Output power: 250 W max.
- Output voltage
- 12.6 V DC
- Output voltage (standby): 5 V DC
- Output voltage accuracy
- +12.6 V: -5%/+5% (depending on load)
- +5 V (standby): -5%/+5%
- Output current
- 19.8 A nom. (@ 12.6 V DC)
- 1 A nom. (@ 5 V DC standby)
- Active Inrush Current Limitation:
- Max. 30 A (at t > 200 us) < 15 A²s
- Interruption of voltage supply: 10 ms (EN 50155:2021, class S2)
- Load Regulation: < 1 % (0 % - 100 % load)
- Efficiency: 91 % to 95 %, depending on input voltage, load distribution and output power
- Protection features
- Reverse polarity protection
- Inrush current limitation
- Overtemperature protection
- Overvoltage protection
- Overcurrent protection
- Power Variations
- No functional disturbance with input voltage variations according to EN 50155
- LED
- Status: power status (operation, failure, standby)
- Rear I/O
- 2x H15 (IEC 60603-2), 15-pin, plug
- Output voltage supervision
- Temperature supervision
- Supply voltage: 24 V DC to 110 V DC nom. (EN 50155)
- Isolation voltage
- Input/output: 2200 V DC
- Input/shield: 2200 V DC
- Output/shield: 750 V DC
- Dimensions: 3U, 12HP
- Weight: 863 g
- Cooling: Air cooling, natural convection, airflow 1.5 m/s
- Integrated heat sink
- Compliance level: This product is prepared for use in EN 50155 systems. Some parameters are system-dependent and are specified on system level.
- Operating temperature: -40 °C to +85 °C (EN 50155:2021, Tmax/PCB = +85 °C; designed for use in OT4+ST1 systems)
- Equipment location
- EN 50155:2021, location 2, cabin and interiors
- EN 50155:2021, location 3, closed electrical operating area; forced filtered ventilation with outside air
- Rapid temperature variations: EN 50155:2021, class H1, no requirements
- Storage temperature: -40 °C (EN 50155:2021) to +85 °C (EN 60068-2-2, Bb)
- Altitude: +3000 m max. (EN 50125-1:2014, class AX)
- Pollution degree: EN 50124-1:2017, class PD2
- Humidity: +55 °C and +25 °C, 100 % RH max. (EN 50155:2021)
- Shock: 30 ms @ 100 m/s² (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B, double acceleration)
- Vibration: 10 min @ 2.02 m/s² (functional) and 5 h @ 11.44 m/s² (long-life) (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B, double acceleration)
- Power supply: General compliance with power supply requirements of EN 50155:2021
- Electrical safety
- EN 50155:2021
- EN 50153:2014 + A1:2017 + A2:2020
- EN 50124-1:2017
- EN ISO 13732-1:2008
- EN 62368-1:2020 + A11:2020
- Fire protection: EN 45545-2:2020, EL9, HL3
- EMC emission
- EN 50121-3-2:2016 + A1:2019
- Regelung Nr. EMV 06 :2019-05-09 (2.0), Anhang E: Messung an Geräten, Schutzklasse S1
- Regelwerk 50.02.01 :2021-12-01, 12.3.2. EMV - Funk, prequalified according to electronic equipment tests defined by Deutsche Bahn EMV 06 standard, class S1, for risk minimization in finished vehicle test
- EMC immunity: EN 50121-3-2:2016 + A1:2019
- Protective coatings: EN 50155:2021, class PC2 (Any PCB protected on both sides)
- Useful life: 20 years (EN 50155:2021, class L4)
- Operating temperature: -40 °C to +70 °C (EN 50125-3:2003, class T2, cubicle, with class T2 maximum extended by 5 °C)
- Storage temperature: -40 °C (EN 60068-2-1:2007, Ab) to +85 °C (EN 60068-2-2:2007, Bb)
- Altitude: +3000 m max. (EN 50125-3:2003, class AX)
- Pollution degree: EN 50124-1:2017, class PD2
- Humidity: 100 % RH max. (EN 50125-2:2002, control cabinet, class T1/T2/TX)
- Vibration: 10 m/s² (EN 50125-3:2003, in the railway track bed)
- Electrical safety
- EN 50124-1:2017
- EN 62368-1:2014 + AC:2015
- EMC emission
- EN 50121-4:2016+A1:2019
- EN IEC 61000-6-4:2019
- [deprecated] EN 61000-6-4:2007 + A1:2011
- EMC immunity
- EN 50121-4:2016+A1:2019
- [deprecated] EN 61000-6-2:2005
- Restrictions: Service interfaces may only be used with a maximum cable length of 3 m for installations 10 m or less away from the track.
