GP2
4-Port Gigabit SFP PHY Line Card
Main Features
- 100/1000 Mbit/s SFP modules supported
- FX / SX / LX / ZX modules supported
- 4 SFP cages
- LEDs for link and activity status
- -40 to +85°C with qualified components
- EN 50155 classTx (railways)
- PICMG CPCI-S.0 CompactPCI Serial peripheral card (limited mechanical compliance)

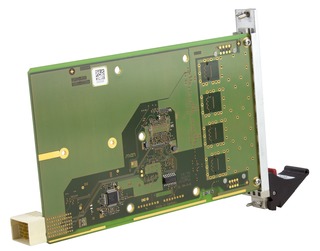

The GP2 is a 3U Gigabit Ethernet PHY line card implemented as a CompactPCI Serial board. It occupies one peripheral slot using a 4 HP front panel with four Gigabit Ethernet ports on SFP cages.
The GP2 is designed to work in combination with the G101 CompactPCI Serial managed industrial Ethernet switch.
The GP2 provides four cages for 100BASE-FX, 1000BASE-SX, 1000BASE-LX and 1000BASE-ZX SFP modules. Each interface supports a data transfer rate of 1 Gbit/s max, and provides two LEDs to indicate the link and activity status.
The GP2 operates with a primary voltage supply of +12 V, which is provided via the rear CompactPCI serial connector. All additional required voltages are generated onboard. It is fully compliant with the EN 50155 railway standard, qualified for a -40 to +85°C operation temperature and ready for coating.
- CISCO GLC-SX-MM, 1 Gbps BASE-SX, 220/500 m, 0 to +70°C
- AVAGO ABR-5710 ALZ, 1 Gbps BASE-SX, 250/550 m, -40 to +85°C
- Finisar FTLF8519P3BTL, 1 Gbps BASE-SX, 300/500 m, -40 to +85°C
- Finisar FTLF1318P3BTL, 1 Gbps BASE-LH, 10 km, -40 to +85°C
- Finisar FTLF1518P1BTL, 1 Gbps BASE-ZX, 80 km, -40 to +85°C
- AVAGO ABR-57R5APZ, 4.25 Gbps BASE-SX, 300 m @ 2.125 Gbps, -10 to +85°C
- Ethernet
- Four SFP slots, 1000BASE-SX/LX/ZX (1 Gbit/s)
- Status LEDs
- Two LEDs for each SFP slot
- Signal link status
- Signal link activity
- Serial GPIO (SGPIO)
- Quad Serial Gigabit Interface (QSGMII)
- Peripheral slot with extensions (QSGMII)
- BITE Voltage Supervision
- Voltage monitoring
- Supply voltages
- +12 V (±10%)
- Power consumption
- 5 W (max. 15 W depending on SFP modules)
- Dimensions: 3U, 4 HP
- Weight: 136 g
- Temperature range (operation):
- -40°C to +85°C
- Airflow 1.5m/s
- Temperature range (storage): -40°C to +85°C
- Relative humidity (operation): max. 95% non-condensing
- Relative humidity (storage): max. 95% non-condensing
- Altitude: -300 m to +2000 m
- Shock: 50 m/s², 30 ms
- Vibration (Function): 1 m/s², 5 Hz to 150 Hz (EN 61373)
- Vibration (Lifetime): 7.9 m/s², 5 Hz to 150 Hz (EN 61373)
- Flammability (PCBs)
- UL 94 V-0
- Electrical Safety
- EN 50155 (Insulation)
- EN 50155 (Voltage)
- EN 55022 (radio disturbance)
- EN 61000-4-2 (ESD Immunity)
- EN 61000-4-4 (burst)
