G303
Unmanaged 16-Port Industrial Ethernet Switch
Main Features
- Unmanaged 16-port rugged Ethernet switch
- Up to 16 Gigabit Ethernet ports on rear I/O
- Or 3 ports on front and up to 13 ports on rear
- LEDs for front port and board states
- -40°C to +85°C
- EN 50155 class TX compliant (railways)
- PICMG CPCI-S.0 CompactPCI Serial peripheral card
Unmanaged Industrial Ethernet Switch

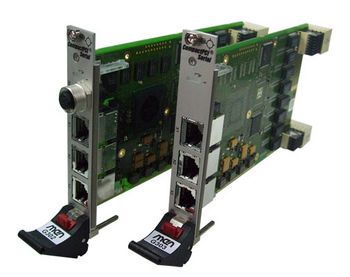

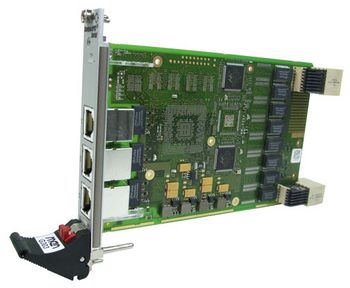

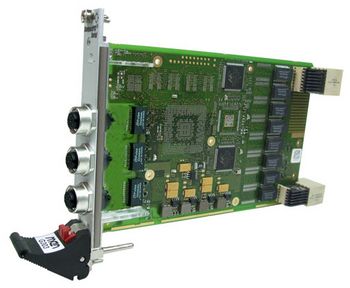

The G303 is an unmanaged 3U Ethernet switch implemented as a CompactPCI Serial board. It occupies one peripheral slot, using a 4 HP front panel with 3 Gigabit Ethernet ports on RJ45 or M12 connectors. The G303 either features three Ethernet ports on the front and up to 13 Ethernet ports on the rear or alternatively all 16 Ethernet ports on the rear, which is the ideal solution for conduction cooling.
Reliable Communication System Component
The G303 supports full-duplex and half-duplex operation with auto-negotiation, high-speed non-blocking store-and-forward switching. Its built-in test mechanisms make the G303 an even more reliable component in the communication system. Using the EEPROM, the port speed and duplex can be configured, and the port-based VLAN-IDs can be assigned.
Compliant to Railway Standards
The railway Ethernet switch is specifically designed for rugged mobile communication systems and fully compliant with the EN 50155 railway standard, qualified for a -40 to +85°C operation temperature and ready for coating.
