G240

10 Gigabit Ethernet Network Interface Board

3U CompactPCI Serial

Main Features

Two 10 Gigabit Ethernet channels
100/1000BASE-TX / 2.5/5/10GBASE-TX supported
IEEE1588v2/PtP Timing Protocols, AVB and TSN supported
M12 X-coded or RJ45 connectors
-40 °C to +85 °C
PICMG CPCI-S.0 CompactPCI Serial peripheral card

Description

10 Gigabit Ethernet Board

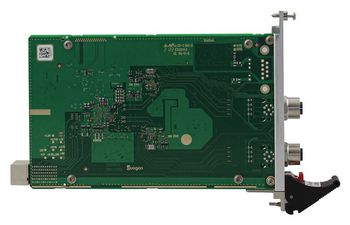

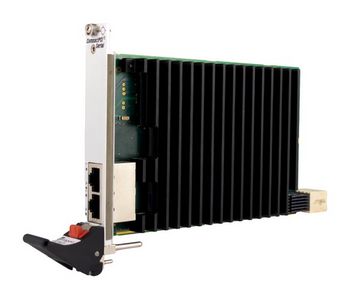

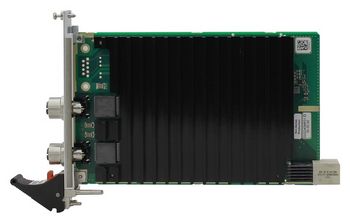

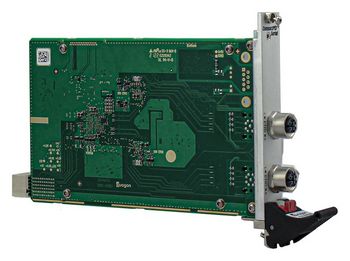

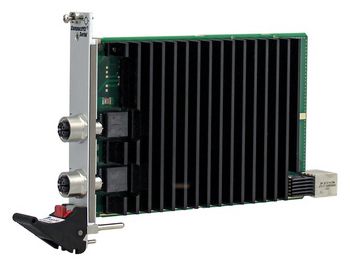

The G240 Ethernet interface board is a 5-speed (100/1000BASE-TX/2.5/5/10GBASE-TX) rugged single Eurocard CompactPCI Serial peripheral board. It can be used in combination with a CompactPCI Serial CPU board in a 19" CompactPCI Serial system. It provides two 10 Gigabit Ethernet interfaces at the front panel which can be accessed on two M12 X-coded or RJ45 connectors making it especially suited for applications in harsh environments. The interfaces are controlled by two 10G Ethernet controllers which support IEEE1588v2/PtP Timing Protocols, AVB and TSN. Each interface supports a data transfer rate of 10 Gbit/s.
Designed for Railway Applications
The G240 is designed for the extended operating temperature and prepared for conformal coating for use in harsh and mobile environments, in particular for rolling stock applications.

Interfaces

This product includes interface options
- Different front connectors
Ethernet
- 2 × 100/1000BASE-TX / 2.5/5/10GBASE-TX, M12, X-coded, receptacle
- 2 × 100/1000BASE-TX / 2.5/5/10GBASE-TX, RJ45
- The product provides M12 or RJ45 front connectors
PCI Express
- 1 × PCIe 3.0, x4, backplane
Serial
- 1 × RS232, isolated, D-Sub, 9-pin, plug, for service (optional)
- 1 × RS422/RS485, isolated, D-Sub, 9-pin, plug, for service (optional)
LED
- Ethernet: activity, link
- User configurable: 4 × (optional)

Electrical Specifications

Isolation voltage

500 V AC (product versions with M12 connectors)
1500 V AC (product versions with RJ45 connectors)

Mechanical Specifications

Dimensions: 3U, 4 HP
Weight: 329 g
Cooling: Air cooling, forced convection, airflow 1.0 m/s

Product Compliance: Rail - Rolling Stock

Compliance level: This product is prepared for use in EN 50155 systems. Some parameters are system-dependent and are specified on system level.
Operating temperature: -40 °C to +70 °C, +85 °C for 10 min (EN 50155:2021, class OT4, ST1)
Equipment location
- EN 50155:2021, location 1, closed electrical operating area
- EN 50155:2021, location 2, cabin and interiors
Rapid temperature variations: EN 50155:2021, class H1, no requirements
Storage temperature: -40 °C (EN 50155:2021) to +85 °C (EN 60068-2-2, Bb)
Altitude: +3000 m max. (EN 50125-1:2014, class AX)
Pollution degree: EN 50124-1:2017, class PD2
Humidity: +55 °C and +25 °C, 100 % RH max. (EN 50155:2021)
Shock: 30 ms @ 50 m/s² (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B)
Vibration: 10 min @ 2.02 m/s² (functional) and 5 h @ 11.44 m/s² (long-life) (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B, double acceleration)
Electrical safety
- EN 50124-1:2017
- EN 50153:2014 + A1:2017 + A2:2020
- EN 50155:2021
- EN ISO 13732-1:2008
Fire protection: EN 45545-2:2020, EL9, HL3
EMC emission
- EN 50121-3-2:2016 + A1:2019
- Regelung Nr. EMV 06 :2019-05-09 (2.0), Anhang E: Messung an Geräten, Schutzklasse S1
- Regelwerk 50.02.01 :2021-12-01, 12.3.2. EMV - Funk, prequalified according to electronic equipment tests defined by Deutsche Bahn EMV 06 standard, class S1, for risk minimization in finished vehicle test
EMC immunity: EN 50121-3-2:2016 + A1:2019
Protective coatings: EN 50155:2021, class PC2 (Any PCB protected on both sides)
Useful life: 20 years (EN 50155:2021, class L4)

Product Compliance: Rail - Wayside Non-Safety Related

Operating temperature: -5 °C to +55 °C (EN 50125-3:2003, class T1, container N.T.C.)
Storage temperature: -40 °C (EN 60068-2-1:2007, Ab) to +85 °C (EN 60068-2-2:2007, Bb)
Altitude: +3000 m max. (EN 50125-3:2003, class AX)
Pollution degree: EN 50124-1:2017, class PD2
Humidity - Condensation: Non-condensing
Shock: 11 ms @ 20 m/s² (EN 50125-3:2003, in a switch cabinet 1 m to 3 m from the track)
Vibration: 2.3 m/s² (EN 50125-3:2003, in a switch cabinet 1 m to 3 m from the track)
Electrical safety
- EN 50124-1:2017
- EN 62368-1:2014 + AC:2015
EMC emission: EN 50121-4:2016
EMC immunity: EN 50121-4:2016
Restrictions: Service interfaces may only be used with a maximum cable length of 3 m for installations 10 m or less away from the track.

Product Compliance: Information Technology Equipment

Operating temperature: 0 °C (EN 60068-2-1:2007, Ae, temperature value in compliance with 6.6 b) to +60 °C (EN 60068-2-2:2007, Be)
Storage temperature: -40 °C (EN 60068-2-1:2007, Ab) to +85 °C (EN 60068-2-2:2007, Bb)
Altitude: +3000 m max. (EN 62368-1:2014 + AC:2015)
Humidity - Condensation: Non-condensing
Electrical safety: EN 62368-1:2014 + AC:2015
Flammability (PCBs): UL 94 V-0
EMC emission: EN 55032:2015 (multimedia equipment), class A (industrial environments)
EMC immunity: EN 55035:2017 (multimedia equipment)

Reliability

MTBF: 682 825 h predicted @ 40 °C according to IEC/TR 62380 (RDF 2000)

Software Support

Linux
Windows
- Windows 10 IoT Enterprise 64-bit
