G211

Quad Gigabit Ethernet Interface Board, RJ45 or M12-A

3U CompactPCI Serial
Not recommended for new designs
Previous
Next

Main Features

  • Four 10/100/1000BASE-T Ethernet channels
  • Intel i82580 Server Chipset with support for 8 virtual machines
  • Full-duplex or half-duplex
  • RJ45 or robust M12 A-coded connectors
  • Fully integrated to comply with IEEE802.3u
  • 1500 V isolation voltage
  • -40 °C to +85 °C
  • PICMG CPCI-S.0 CompactPCI Serial peripheral card
Description

Quad Gigabit Ethernet Board
The G211 quad Ethernet interface is a rugged single Eurocard CompactPCI Serial peripheral board. It can be used in combination with a CompactPCI Serial or CompactPCI PlusIO CPU board in a CompactPCI Serial or hybrid system.

Flexible Front Connectors

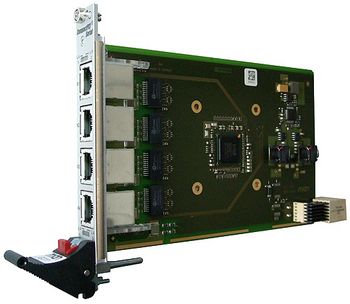

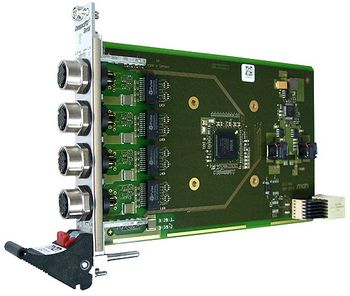

It provides four Gigabit Ethernet interfaces at the front panel which can be accessed either on four RJ45 or four A-coded M12 connectors making it especially suited for applications in harsh environments.

All four interfaces are controlled by one Ethernet controller which is connected to the backplane via a x4 PCI Express link and supports the IEEE 802.3x standard. Each interface supports a data transfer rate of 1Gbit/s, even if all interfaces are used simultaneously. Two LEDs show the link and activity status of every interface.

Rugged Environments
The G211 is designed for extended operating temperature and prepared for conformal coating for use in harsh and mobile environments.
