F205
M-Module Carrier Board for 2 Mezzanine Cards
Main Features
- 1 CompactPCI bus slot
- 2 M-Module slots
- -40 °C to +85 °C
- PICMG CompactPCI peripheral card (limited mechanical compliance)
Universal I/O on CompactPCI

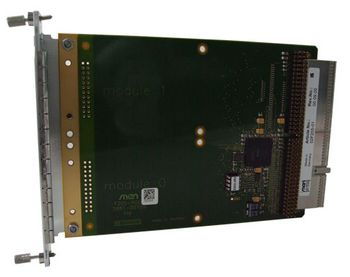

The F205 is a 3U M-Module carrier board for universal I/O on the CompactPCI bus. It allows high flexibility in applications such as data acquisition or process control.

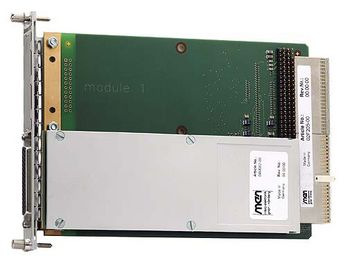

The F205 is slightly higher than standard 3U format, providing enough space for two M-Modules while staying compatible with CompactPCI housings through special guide rails already included in the delivery. M-Modules are screwed tightly on the board and require no separately mounted transition panel.
The F205 offers developers instant access to more than 70 different M-Modules for I/O in fields such as process I/O, measurement, instrumentation, motion control, communication, and development.
Long-Term Availability
Long-term availability ensures an extended product life and future-safety.
