PC2613
PC2 Configurable I/O Controller with RS485 (HDLC)
Programmable Universal I/O Controller with HDLC/RS485 Interface
Main Features
- Six software configurable analog inputs
- Sixteen software configurable digital inputs
- Sixteen low-side (sinking) digital outputs
- Three software configurable universal inputs (analog or digital)
- Two software configurable universal outputs (analog or digital)
- Remote I/O Expansion through isolated RS485 port
- MicroSD card interface
- Suitable for nominal battery voltages of 24 VDC in accordance with EN 50155
- Operating temperature range: -40 °C to +70 °C (+85 °C for 10 minutes).
- Conformal Coating
Description
Programmable Controller

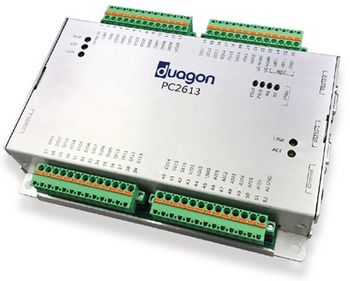

The PC2613 is a EN 50155 compliant, software configurable programmable controller supporting one isolated RS485 port (HDLC Slave). It is suitable for railway applications on rail vehicles.
The PC2613 has been proven to survive the rigors required for railway vehicles including electrical surges and transients (EN 50155/EN 50121-3-2), shock and vibration (EN 50155/EN 61373), an operating temperature of -40 °C to +70 °C and a relative humidity of 5% to 95% non-condensing.
Applications
Passenger Vehicle Condition Based Monitoring
Heating Ventilation Air Conditioning (HVAC) Control Systems
Onboard controls for fire protection, power packs and doors
Locomotive Performance and Condition Monitoring
Trackside Monitoring and SCADA
Industrial Control Systems
Digital Inputs
- 16 channels
- Configurable via software
- Input voltage
- 40 V DC max.
- Logical High: 9 V min.
- Logical Low: 7 V max.
- Input current
- 8 mA, nominal
- Pulse counting
- 500 Hz max.
Digital Outputs
- 16 channels
- Switch voltage
- 40 V max.
- Load current
- 1 A max.
- Output type
- Low-side (sinking) outputs
Analog Inputs
- 6 channels
- Configurable via software
- Input voltage
- 0 V to 10 V DC
- 40 V DC max.
- Input current
- 0 mA to 20 mA
Universal Inputs
3 channels
- Configurable via software as analog or digital
Universal Outputs
2 channels
- Configurable via software as analog or digital
Frequency Counter Input Characteristics
- Input voltage
- Logical low min.: 0 V
- Logical high max.: 24 V
- Input current
- Logical low max.: 8 mA
- Logical high max.: 8 mA
- Input voltage max.: 40 V
CPU
NXP Vybrid VF50N, 1 core, 400 MHz
Memory
- System RAM
- DDR3
- 128 MB max.
- NAND Flash: 128 MB
- Non-volatile RAM (NVRAM): 128 kB MRAM
Mass Storage
The following mass storage devices can be assembled:
- microSD card
Interfaces
- SD/microSD card slot
- 1 × microSD card
- Digital I/O
- 16 × digital input, non-isolated, Phoenix Contact FKC, 13-pin, receptacle
- 16 × digital output, non-isolated, Phoenix Contact FKC, 13-pin, receptacle
- 3 × universal input, analog or digital
- 2 × universal output, analog or digital
- Analog Inputs
- 6 × analog input, non-isolated, Phoenix Contact FKC, 13-pin, receptacle
- 3 × universal input, analog or digital
- Ethernet
- 1 × 10/100BASE-T, M12, D-coded, receptacle
- Serial
- 2 × RS232, non-isolated, D-Sub, 9-pin, receptacle
- 1 × RS485 (HDLC), isolated, Phoenix Contact FKC, 13-pin, receptacle
- 1 × RS485, isolated, Molex Mini-Fit Jr., 4-pin, receptacle
- LED
- Status: power status
- User configurable: 2 ×
- Ethernet: activity, link
- HDLC: TX, RX, STS2, STS3
- Power
- 1 × power in, Power Phoenix Contact FKC, 13-pin, receptacle
- Earthing connection
- M6 screw
Supervision and Management
- Watchdog
- Real-time clock, buffered by battery or supercapacitor
Electrical Specifications
Supply voltage: 24 V DC nom.
Mechanical Specifications
- Dimensions: (W) 147 mm, (D) 204 mm, (H) 42 mm
- Weight: 600 g
- Mounting: Wall/flat surface
- Protection rating: IP20
- Fire Load: 4 MJ (without aluminum enclosure)
Product Compliance: Rail - Rolling Stock
- Operating temperature: -40 °C to +70 °C, +85 °C for 10 min (EN 50155:2017, class OT4, ST1)
- Storage temperature: -40 °C (EN 50155:2017) to +85 °C (EN 60068-2-2, Bb)
- Altitude: +2000 m max. (EN 50125-1:2014, class AX)
- Pollution degree: EN 50124-1:2017, class PD2
- Overvoltage category: EN 50124-1:2017, class OV2
- Shock: 30 ms @ 50 m/s² (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B)
- Vibration: 10 min @ 1.01 m/s² (functional) and 5 h @ 5.72 m/s² (long-life) (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B)
- Electrical safety: EN 50155:2017
Reliability
MTBF: 270 644 h predicted @ 40 °C according to IEC/TR 62380 (RDF 2000)
Software Support
- Linux
- "C" programmable with C-API libraries
- ISaGRAF (IEC 61131-3)
- iecTeso (IEC 61131-3: SFC, FBD, LD, ST, IL, FC)
