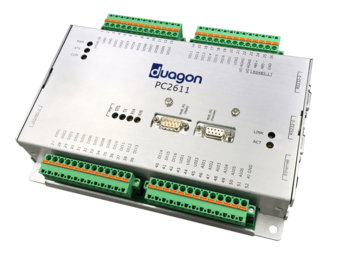

PC2611

PC2 Configurable I/O Controller with MVB

Programmable Universal I/O Controller with MVB Interface

Main Features

  • Six software configurable analogue inputs.
  • Sixteen software configurable digital inputs.
  • Sixteen low-side (sinking) digital outputs.
  • Three software configurable universal inputs (analogue or digital).
  • Two software configurable universal outputs (analogue or digital).
  • Two independent (isolated) MVB-EMD interfaces.
  • Remote I/O Expansion through isolated RS485 port.
  • 10/100 Mbps Wired Ethernet.
  • Two RS232 serial communications ports.
  • One 2-wire non-isolated RS485 serial communications port.
  • Connections for MVB-EMD via DB9.
  • MicroSD card interface.
  • Suitable for nominal battery voltages of 24VDC in accordance with EN 50155.
  • Operating temperature range: -40°C to +70°C (+85°C for 10 minutes).
  • Conformal Coating.
Description

Programmable Controller
The PC2611 is a EN 50155 compliant, software configurable programmable controller. It is suitable for railway applications on rail vehicles.
The PC2611 has been proven to survive the rigors required for railway vehicles including electrical surges and transients (EN 50155/EN 50121-3-2), shock and vibration (EN 50155/EN 61373), an operating temperature of -40 °C to +70 °C and a relative humidity of 5% to 95% non-condensing.

Applications
Passenger Vehicle Condition Based Monitoring
Heating Ventilation Air Conditioning (HVAC) Control Systems
Onboard controls for fire protection, power packs and doors
Locomotive Performance and Condition Monitoring
Trackside Monitoring and SCADA
Industrial Control Systems
