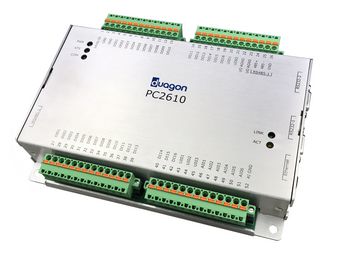

PC2610
PC2 Configurable I/O Controller
Programmable Universal I/O Controller with RS232 Interface
Main Features
- 16 digital inputs, 16 digital outputs
- 6 analog inputs
- 3 universal inputs (analog or digital)
- 2 universal outputs (analog or digital)
- One 10BASE-T/100BASE-TX Ethernet interface
- Two RS232 serial communications ports
- One 2-wire non-isolated RS485 serial communications port
- Remote I/O expansion through isolated RS485 port
- Suitable for nominal battery voltage of 24 V DC in accordance with EN 50155
- Operating temperature range: -40 °C to +70 °C (+85 °C for 10 minutes)
- Conformal coating
Description
Programmable Controller
The PC2610 is a EN 50155 compliant, software configurable programmable controller. It is suitable for railway applications on rail vehicles.
The PC2610 has been proven to survive the rigors required for railway vehicles including electrical surges and transients (EN 50155/EN 50121-3-2), shock and vibration (EN 50155/EN 61373), an operating temperature of -40 °C to +70 °C and a relative humidity of 5% to 95% non-condensing.
Applications
A wide range of railway applications is supported. The PC2610 is intended for passenger vehicle condition-based monitoring, HVAC control systems, onboard controls for fire protection, power packs and doors, as well as locomotive performance and condition monitoring, trackside monitoring and SCADA, and industrial control systems.
Digital Input Characteristics
- 16 channels: configurable via software
- Input voltage
- 40 V DC max.
- Logical High: 9 V min.
- Logical Low: 7 V max.
- Input current: 8 mA, nominal
- Pulse counting: 500 Hz max.
Digital Output Characteristics
- 16 channels
- Switch voltage: 40 V max.
- Load current: 1 A max.
- Output type: Low-side (sinking) outputs
Analog Input Characteristics
- 6 channels
- Configurable via software
- Current mode: 0 to 20 mA or
- Voltage mode: 0 to 10 V DC or
- Resistive mode: tuned for 5 kOhm NTC at 25 °C
- Maximum input voltage: ±40 V DC
Universal Input Characteristics
3 channels: configurable via software as analog or digital
Universal Output Characteristics
2 channels: configurable via software as analog or digital
Frequency Counter Input Characteristics
- Input voltage
- Logical low min.: 0 V
- Logical high max.: 24 V
- Input current
- Logical low max.: 8 mA
- Logical high max.: 8 mA
- Input voltage max.: 40 V
CPU
i.MX6ULL, 800 MHz
Memory
- System RAM
- DDR3
- 512 MB max.
- NAND Flash: 512 MB
- Non-volatile RAM (NVRAM): 128 kB MRAM
Mass Storage
The following mass storage devices can be assembled: microSD card
Interfaces
- Digital I/O
- Digital inputs: non-isolated, Phoenix Contact FKC, 13-pin, receptacle, 2 connectors (shared with universal inputs and analog inputs)
- Digital outputs: non-isolated, Phoenix Contact FKC, 13-pin, receptacle, 2 connectors (shared with universal outputs, power and non-isolated RS485)
- Analog I/O: analog input, non-isolated, Phoenix Contact FKC, 13-pin, receptacle
- Universal I/O
- Universal inputs: analog or digital, non-isolated, Phoenix Contact FKC, 13-pin, receptacle
- Universal outputs: analog or digital, non-isolated, Phoenix Contact FKC, 13-pin, receptacle
- Ethernet: 1 × 10BASE-T/100BASE-TX, M12, D-coded, receptacle
- Serial
- 2 × RS232, non-isolated, D-Sub, 9-pin, receptacle
- 1 × RS485, non-isolated, Phoenix Contact FKC, 13-pin, receptacle
- 1 × RS485, isolated, Molex Mini-Fit Jr., 4-pin, receptacle
- LED
- Status: 1 × power status
- User configurable: 2 ×
- Ethernet: 1 × activity, 1 × link
- Power: 1 × power in, Power Phoenix Contact FKC, 13-pin, receptacle
- Earthing connection: M6 screw
Supervision and Management
- Watchdog
- Real-time clock, buffered by battery or supercapacitor
Electrical Specifications
Supply voltage: 24 V DC nom.
Mechanical Specifications
- Dimensions: (W) 147 mm, (D) 204 mm, (H) 42 mm
- Weight: 600 g
- Mounting: Wall/flat surface
- Protection rating: IP20
- Fire Load: 4 MJ (without aluminum enclosure)
Product Compliance: Rail - Rolling Stock
- Operating temperature: -40 °C to +70 °C, +85 °C for 10 min (EN 50155:2017, class OT4, ST1)
- Storage temperature: -40 °C (EN 50155:2017) to +85 °C (EN 60068-2-2, Bb)
- Altitude: +2000 m max. (EN 50125-1:2014, class AX)
- Pollution degree: EN 50124-1:2017, class PD2
- Overvoltage category: EN 50124-1:2017, class OV2
- Shock: 30 ms @ 50 m/s² (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B)
- Vibration: 10 min @ 1.01 m/s² (functional) and 5 h @ 5.72 m/s² (long-life) (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B)
- Electrical safety: EN 50155:2017
Reliability
MTBF: 270 664 h predicted @ 40 °C according to Telecordia SR-332 Issue 2 - Parts Count Method
Software Support
- Linux
- "C" programmable with C-API libraries
- iecTeso (IEC 61131-3:2025 SFC, FBD, LD, ST, IL)
