RIO3
Remote I/O Expansion Modules for Railway Applications
Main Features
- Designed for railway applications
- Wide range of I/O options
- High-level I/O integration enables complex control
- RS485 isolated port for connection with the Master Controller
- Scalable design for easy configuration adaptation
- Suitable for nominal battery voltages of 24 V DC
- Connections via cage clamp plug socket connectors
- Operating temperature range: -40 °C to +70 °C (+85 °C for 10 minutes)
- EN 50155 compliant
Applications
The RIO3 I/O modules support applications like Passenger Vehicle Condition Based Monitoring, HVAC Control Systems or onboard controls for fire protection, power packs and doors. Flexible Design for Railway Subsystems
If the standard PC3 does not cover all I/O needs for your configuration, duagon can create a RIO3 Remote I/O module, which will work as slave system and will communicate with the Master Controller via a RS485 isolated port. RIO3 is also suitable when is more convenient to allocate the I/O module close to the actuators in the train configuration.

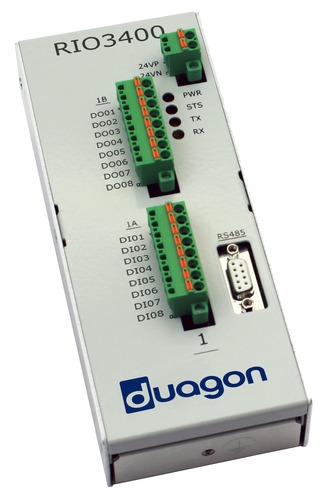

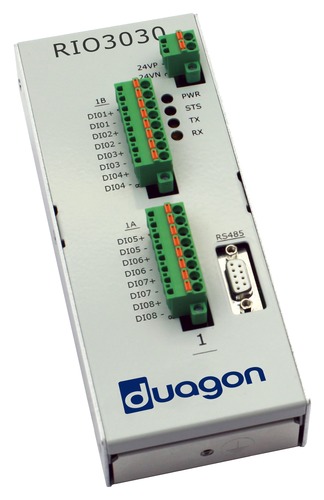

I/O Modules
To create the RIO3 Remote I/O module, up to nine PC3 I/O modules can be selected and combined. Once you have chosen your configuration, the RIO3 is quickly manufactured resulting in a railway compliant product. Our wide range of certified off-the-shelf modules are listed in the following table. If your requirements are slightly different to our standard product offering, we can provide our ISO 9001 accredited design services to customize the RIO3 Remote I/O module to suit your application.
- Channels configurable via software
- Input voltage
- 24 V DC nom. or 110 V DC nom.
- Input current
- 5 mA, nominal
- Input type
- High-side switch (load to ground)
- High-side switch (load to ground)

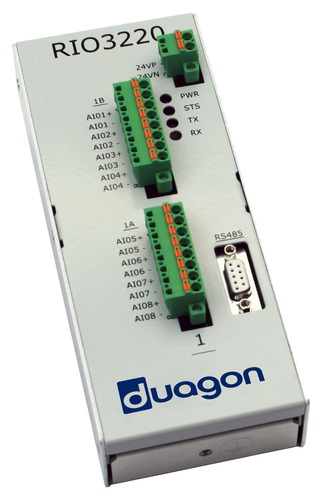

- Channels with 12-bit resolution
- Configurable as:
- Current: 0 to 20 mA or
- Voltage: 0 to 10 V DC
- 8 RTD input channels, 2-wire RTD, RTD sensors supported, PT100 or PT1000
- -50 °C to 500 °C temperature range
- Channels with 12-bit resolution
- Configurable as:
- Voltage: 0 to 12 V DC
- Serial: 1 × RS485, isolated, D-Sub, 9-pin, receptacle
- Earthing connection: M4 screw
- Dimensions: (W) depending on selected quantity of modules, (D) 192 mm, (H) 55.2 mm
- Mounting: Wall/flat surface
- Protection rating: IP20
- Operating temperature: -40 °C to +70 °C, +85 °C for 10 min (EN 50155:2017, class OT4, ST1)
- Storage temperature: -40 °C (EN 50155:2017) to +85 °C (EN 60068-2-2, Bb)
- Altitude: +2000 m max. (EN 50125-1:2014, class AX)
- Shock: 30 ms @ 50 m/s² (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B)
- Vibration: 10 min @ 1.01 m/s² (functional) and 5 h @ 5.72 m/s² (long-life) (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B)
- Fire protection: EN 45545-2:2013 + A1:2015, HL1
- EMC emission: EN 50121-3-2:2016 + A1:2019
- EMC immunity: EN 50121-3-2:2016 + A1:2019
