SA8
CAN Bus ISO High-Speed Interface Adapter
Hauptmerkmale
- 1 ISO high-speed channel Optically isolated Shielded 9-pin D-Sub connector

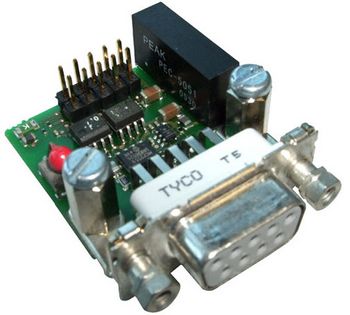

The SA8 is a 1-channel CAN ISO high-speed interface adapter with optical isolation.
SA-Adapters are small universal boards providing the physics for legacy serial I/O, fieldbus interfaces and other small I/O functions. One serial line is provided per adapter, which can be plugged directly to the CPU board as a mezzanine. Alternatively, the adapter can be connected to the front panel via ribbon cable. The SA concept allows to add additional I/O interfaces to many of duagon's CPU boards, enhancing flexibility with regard to the line transceivers and isolation requirements. Whether a specific SA-Adapter (or a mix of different SA-Adapters) fits on a specific CPU board is determined by a combination of mechanical, performance, FPGA and operating system criteriaand needs to be verified for every board configuration requested.
- 2 data lines
- 2 power supply lines
- ISO high-speed
- Fully compatible with ISO 11898-24 V standard
- As a piggy-back board directly on a CPU board
- Via ribbon cable
- Isolation voltage:
- 500V DC
- Voltage between the connector shield and isolated ground is limited to 180 V using a varistor; AC coupling between connector shield and isolated ground through 100 nF capacitor
- Supply voltage/power consumption: +5 V (4.85 V..5.25 V), 100 mA typ.
- Dimensions: 32 mm x 42 mm
- Weight: 20 g
- Temperature range (operation):
- 0..+60°C or -40..+85°C
- Airflow: min. 10 m³/h
- Temperature range (storage): -40..+85°C
- Relative humidity (operation): max. 95% non-condensing
- Relative humidity (storage): max. 95% non-condensing
- Altitude: -300 m to + 3 000 m
- Shock: 15 g/11 ms
- Bump: 10 g/16 ms
- Vibration (sinusoidal): 2 g/10..150 Hz
