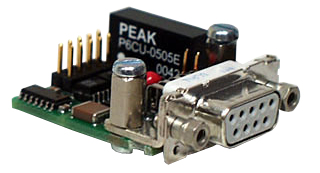

SA2
RS422/RS485 Interface Adapter
Hauptmerkmale
- 1 RS422/485 channel
- Optically isolated
- Shielded 9-pin D-Sub connector
Full- or half-duplex communication
The SA2 is a 1-channel RS422/485 half-/full-duplex interface adapter with optical isolation.
Versatile I/O Features
SA-Adapters are small universal boards providing the line drivers for legacy serial I/O, fieldbus interfaces and other I/O functions. One serial line is provided per adapter, which can be plugged directly to duagon products such as CPU boards as a mezzanine. Alternatively, the adapter can be connected to the front panel via ribbon cable.
Interface Extensibility
The SA concept allows to add additional I/O interfaces to duagon products, enhancing flexibility for line transceivers and isolation requirements. Compatibility of SA-Adapters or a combination thereof with duagon products is determined by mechanical, performance, FPGA and operating system criteria and needs to be verified for every board configuration requested.
Long-Term Availability
Long-term availability ensures an extended product life and future-safety.
- 2 data lines
- 2 power supply lines
- RS422A
- CCITT V.11
- RS485
- As a piggy-back board directly on a CPU board
- Via ribbon cable
- Isolation voltage:
- 500 V DC
- Voltage between the connector shield and isolated ground is limited to 180 V using a varistor (depending on product model); AC coupling between connector shield and isolated ground through 47nF capacitor
- Supply voltage/power consumption: +5 V (4.85 V to 5.25 V), 220 mA typ.
- MTBF: 1 300 000 h @ 50 °C (derived from MIL-HDBK-217F)
- Dimensions: 32 mm x 42 mm
- Weight: 18 g
- Temperature range (operation):
- 0 °C to +60 °C or -40 °C to +85 °C
- Minimum: -50 °C (on request)
- Airflow: min. 10 m³/h
- Temperature range (storage): -40 °C to +85 °C
- Relative humidity (operation): max. 95% non-condensing
- Relative humidity (storage): max. 95% non-condensing
- Altitude: -300 m to + 3,000 m
- Shock: 15 g/11 ms
- Bump: 10 g/16 ms
- Vibration (sinusoidal): 2 g/10 Hz to 150 Hz
