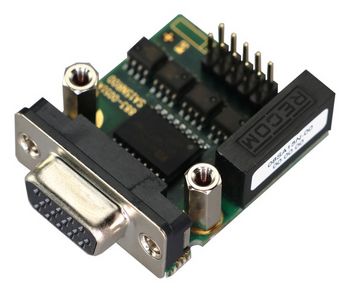

SA15N
8-Channel Digital I/O Adapter
Hauptmerkmale
- 8 digital I/Os
- 15-pin HD-Sub receptacle connector
- Optical isolation
- -40 °C to +85 °C
- Compliant with EN 50155 (railways)
Digital I/O for Railway
The SA15N provides five digital inputs, five digital outputs and three digital bidirectional inputs/outputs. The supported logic level is 3.3 V up to 24 V. The output current for each channel is 500 mA (sinking), but the maximum overall current is 2.5 A.
Versatile I/O Features
SA-Adapters are small universal boards providing the line drivers for legacy serial I/O, fieldbus interfaces and other I/O functions. One serial line is provided per adapter, which can be plugged directly to duagon products such as CPU boards as a mezzanine. Alternatively, the adapter can be connected to the front panel via ribbon cable.
Interface Extensibility
The SA concept allows to add additional I/O interfaces to duagon products, enhancing flexibility for line transceivers and isolation requirements. Compatibility of SA-Adapters or a combination thereof with duagon products is determined by mechanical, performance, FPGA and operating system criteria and needs to be verified for every board configuration requested.
Suitable for Railway Applications
The SA15N complies with the EN 50155 standard for use in railway applications.
Long-Term Availability
Long-term availability ensures an extended product life and future-safety.
- 5 × digital input, isolated, HD-Sub, 15-pin, receptacle
- 5 × digital output, isolated, HD-Sub, 15-pin, receptacle
- 3 × bidirectional inputs/outputs, isolated, HD-Sub, 15-pin, receptacle
- Supply voltage: +5 V (-3 % / +5 %)
- Power consumption: 0.5 W nom.
- Isolation voltage: 500 V AC
- Dimensions: (W) 32 mm, (D) 42 mm, (H) 15 mm
- Weight: 0.01 kg
- Protection rating: IP20
- Compliance level: This product is prepared for use in EN 50155 systems. Some parameters are system-dependent and are specified on system level.
- Operating temperature: -40 °C to +85 °C (EN 50155:2021, Tmax/PCB = +85 °C; designed for use in OT4+ST1 systems)
- Equipment location
- EN 50155:2021, location 1, closed electrical operating area
- EN 50155:2021, location 2, cabin and interiors
- Rapid temperature variations: EN 50155:2021, class H1, no requirements
- Storage temperature: -40 °C (EN 50155:2021) to +85 °C (EN 60068-2-2, Bb)
- Altitude: +3000 m max. (EN 50125-1:2014, class AX)
- Pollution degree: EN 50124-1:2017, class PD2
- Humidity: +55 °C and +25 °C, 100 % RH max. (EN 50155:2021)
- Shock: 30 ms @ 50 m/s² (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B)
- Vibration: 10 min @ 2.02 m/s² (functional) and 5 h @ 11.44 m/s² (long-life) (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B, double acceleration)
- Electrical safety
- EN 50155:2021
- EN 50153:2014 + A1:2017 + A2:2020
- EN 50124-1:2017
- EN ISO 13732-1:2008
- Fire protection: EN 45545-2:2020, EL9, HL3
- EMC emission
- EN 50121-3-2:2016 + A1:2019
- Regelung Nr. EMV 06 :2019-05-09 (2.0), Anhang E: Messung an Geräten, Schutzklasse S1
- Regelwerk 50.02.01 :2021-12-01, 12.3.2. EMV - Funk, prequalified according to electronic equipment tests defined by Deutsche Bahn EMV 06 standard, class S1, for risk minimization in finished vehicle test
- EMC immunity: EN 50121-3-2:2016 + A1:2019
- Protective coatings: EN 50155:2021, class PC2 (Any PCB protected on both sides)
- Useful life: 20 years (EN 50155:2021, class L4)
- Operating temperature: -40 °C to +70 °C (EN 50125-3:2003, class T2, cubicle, with class T2 maximum extended by 5 °C)
- Storage temperature: -40 °C (EN 60068-2-1:2007, Ab) to +85 °C (EN 60068-2-2:2007, Bb)
- Altitude: +3000 m max. (EN 50125-3:2003, class AX)
- Pollution degree: EN 50124-1:2017, class PD2
- Humidity: 95 % RH max. (EN 50125-2:2002, building N.C.C., class T1/T2/TX)
- Shock: 11 ms @ 20 m/s² (EN 50125-3:2003, in a switch cabinet 1 m to 3 m from the track)
- Vibration: 2.3 m/s² (EN 50125-3:2003, in a switch cabinet 1 m to 3 m from the track)
- Electrical safety
- EN 50124-1:2017
- EN 62368-1:2014 + AC:2015
- EMC emission: EN 50121-4:2016+A1:2019
- EMC immunity: EN 50121-4:2016+A1:2019
- Operating temperature: -40 °C (EN 60068-2-1:2007, Ae) to +85 °C (EN 60068-2-2:2007, Be)
- Storage temperature: -40 °C (EN 60068-2-1:2007, Ab) to +85 °C (EN 60068-2-2:2007, Bb)
- Altitude: +3000 m max. (EN 62368-1:2014 + AC:2015)
- Electrical safety: EN 62368-1:2014 + AC:2015
- Flammability (PCBs): UL 94 V-0
- EMC emission: EN 55032:2015 + AC:2016 + A11:2020 + A1:2020 (multimedia equipment), class A (industrial environments)
- EMC immunity: EN 55024:2010 + A1:2015 (information technology equipment)
