PX1N
GLONASS & GPS Interface
Hauptmerkmale
- Multi GNSS support
- Automotive Dead Reckoning (ADR)
- Satellite Based Augmentation System (SBAS)
- -160 dBm tracking sensitivity
- Active/passive antenna connection via U.FL
- Compatible with NMEA 0183
- -40 °C to +85 °C
Provides GLONASS and GPS functionality

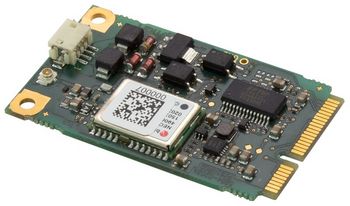

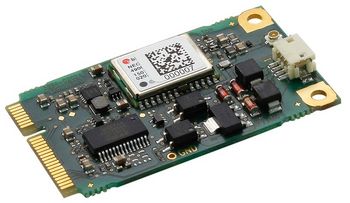

The PX1N is a PCI Express Mini Card providing a GNSS receiver with GLONASS and GPS functionality and can be used in 19" systems, box PCs and display computers. It supports active or passive antennas, which can be connected to an U.FL connector. The received antenna signals are sent to the host via USB.
Supports global satellite navigation systems
The PX1N supports concurrent reception of GPS/QZSS, GLONASS, BeiDou and is Galileo-ready.
Uses dead reckoning functions for high accuracy positioning
The GNSS module provides a 3-axis accelerometer and gyroscope sensors for dead reckoning functions, which enable accurate positioning. Various Satellite-Based Augmentation Systems (SBAS) are also supported. The PX1N provides communication information compliant to the NMEA 0183 protocol.
- 72-channel GNSS (Global Navigation Satellite System) receiver
- GPS signals/frequency: L1C/A, 1575.42 MHz
- GLONASS signals/frequency: L1OF, 1602 MHz
- BeiDou signals/frequency: B1, 1561.098 MHz
- QZSS signals: L1C/A (Pacific region)
- Galileo ready for signals E1B/C
- Assisted GNSS support (A-GNSS)
- AssistNowTM Online
- AssistNowTM Offline
- AssistNowTM Autonomous
- Automotive Dead Reckoning support (gyroscope) (Road Vehicle)
- Augmentation Systems
- Satellite Based Augmentation System (SBAS)
- Differential GPS support (D-GPS)
- RTCM 10402.3
- Integrated Real-Time Clock (RTC)
- Accuracy:
- Horizontal: 2.5 m Autonomous, 2.0 m SBAS
- Velocity: 0.05 m/s
- Heading: 0.3 degrees
- Time To First Fix (TTFF):
- Cold start: 27 s (GPS/GLONASS), 28 s (GPS/BeiDou), 30 s (GPS)
- Hot start: 1.5 s (GPS/GLONASS), 1.5 s (GPS/BeiDou), 1.5 s (GPS)
- Aided start: 4 s (GPS/GLONASS), 6 s (GPS/BeiDou), 3 s (GPS)
- Sensitivity:
- Tracking and navigation: -160 dBm
- Re-acquisition: -159 dBm
- Cold start: -147 dBm
- Hot start: -156 dBm
- Protocol: NMEA 0183 rev. 4.0
- One U.FL antenna connector
- For the use of an external active or passive antenna
- Phantom power supply: 3.3V
- PCI Express Mini Card connector
- USB 2.0
- Input connector
- Wheel tick and direction inputs for dead reckoning support
- Voltage input range of 24 VDC nominal
- Galvanically isolated
- +3.3 V, max. 191 mA
- Impedance: 50 Ohm
- Dimensions: 30 mm x 58 mm x 5 mm (PCI Express Full-Mini Card)
- Weight: 4 g
- Cooling: Air cooling
- Temperature range (operation):
- -40 °C to +85 °C
- Airflow: min. 1 m/s
- Temperature range (storage): -40 °C to +85 °C
- Relative humidity (operation): max. 95% non-condensing (EN 50155 / EN 60068-2-30)
- Relative humidity (storage): max. 95% non-condensing (EN 50155 / EN 60068-2-30)
- Altitude: -300 m to +3000 m
- Shock: 15 g, 11 ms
- Bump: 10 g, 16 ms
- Vibration (sinusoidal): 1 g, 10 to 150 Hz
- EN 50121-3-2 (immunity)
- EN 55011 (radio disturbance)
- EN 61000-4-2/EN 50121-3-2 (ESD)
- EN 61000-4-3/EN 50121-3-2 (electromagnetic field immunity)
- EN 61000-4-4/EN 50121-3-2 (burst)
- EN 61000-4-6/EN 50121-3-2 (conducted disturbances)
- Windows 7 or later
- Linux
